| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | AIS300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
| Product Name: | Inline THT DIP AOI After Wave Soldering | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | Relay Brand: | Schneider |
| Signal: | SMEMA | Application: | Electronic Assembly |
| Power Supply: | AC220V | Weight: | 800kg |

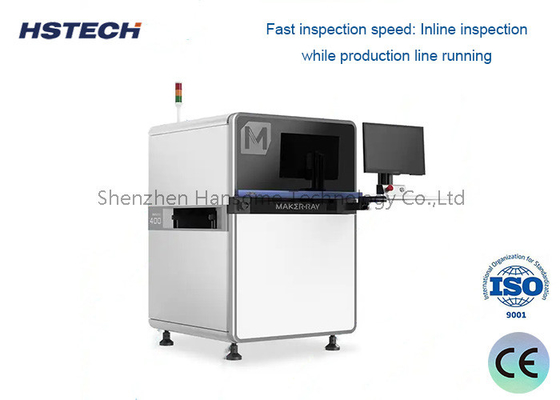

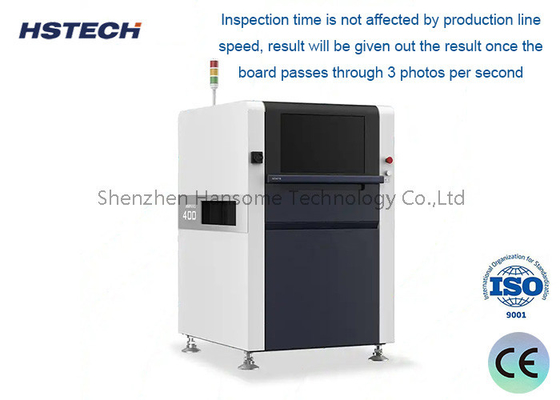

Remote Control Automatic Inline THT DIP AOI After Wave Soldering With Dual XY Linear Actuators
Introduce
Before soldering, AOI can detect the defects of the device itself, such as missing parts or polarity, etc. After reflow soldering, A0| or after wave soldering, AO| can detect: tin connection, too little tin and too much tin, and no tin short-circuit solder ball leakage. -Polarity·shift foot bending wrong parts, AOI testing equipment after wave soldering. Vector analysis technology has set a new industry standard in the AO! industry for the following reasons: 1. The vector image is fully automatically generated, and any object on the PCBA can be taken as a MARK point, making programming more flexible; 2. Provides high-precision defect detection <high Precision positioning technology >;3. Provides extremely low false alarm rate.
1. No Golden Sample is required, only qualified products are required
2. No statistical modeling is required, and there is no need to run dozens of boards for fine-tuning.
3. Automatically generated "vector imaging" (not affected by temperature and focal length) can improve the accuracy, speed and high reliability of component identification and positioning during PCB board assembly.
4. Feature vector analysis (direct calculation of angles and size ratios), perfect combination with IPC standards
Specification
| Model | AIS300 | AIS301 |
| PCB Size | 50x50mm~430x380mm | 50x50mm~350x350mm |
| Thickness | 0.3~7.0mm | |
| Warping extent | <4mm | |
| Component height | Top 150mm, bottom 25mm | |
| Camera | 5MP,color,CCD | |
| Light source | RGB | |
| FOV | 45*37mm | |
| Resolution | 20um | |
| Inspection | ||
| Mounting components defect | Missing,rolling,offset,damage,skew,redundant,dirty. | |
| Solder defect | Excess,insufficient,bridge,no foot,missing solder,non-wetting. | |
| Other function | Bar-code,QR cod,OCR | |
| Speed | 0.23sec/fov | 0.25sec/fov |
| Software/Hardware | ||
| Operation system | Ubuntu 14.04 LTD 64bit | |
| Function | Remote control, Gerber file importing, training tool for new models | |
| Industrial PC | CPU intel i5,Independent Graphics Card,12G DDR,256SSD | |
| Display | 22 inch FHD LCD | |
| Motion | High accuracy linear actuator | |
| Power supply | AC220V,1KW | |
| Air pressure | >0.5Mpa | |
| Dimension(L*H*W) | 1100*1630*1350mm | 1100*1280*1300mm |
| Net Weight | 800kg | 700kg |
Features
A, Core algorithm—— Convolutional Neural Network Algorithm
Application and Innovation in industry
Human-like inspection
Better compatibility
Training algorithm model of super large sample set
High generalization
Super detection ability, lower false positive
Supporting user self-training model
B, High wear resistance
C, Large inspection area and high compatibility
D, High inspection rate and low false positive rate.
E, Marble base, more stable.
F, Dual XY linear actuators, high speed, high accuracy
Application
This inline THT AOI used after wave soldering machine in DIP production line,it used for Correcting the wrong units, which can reduce repairs and time. The passing rate can be improved efficiently. This machine widely used for inspecting TV mainboard,PC mainboard,power board,industrial control board,Mini household electronic appliances and other PCBAs.
