| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS- RM-288 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Automatic Curve PCB Router Using Sycotec Spindle | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Signal: | SMEMA | Power Supply: | AC220V |
| Type: | Automatic |

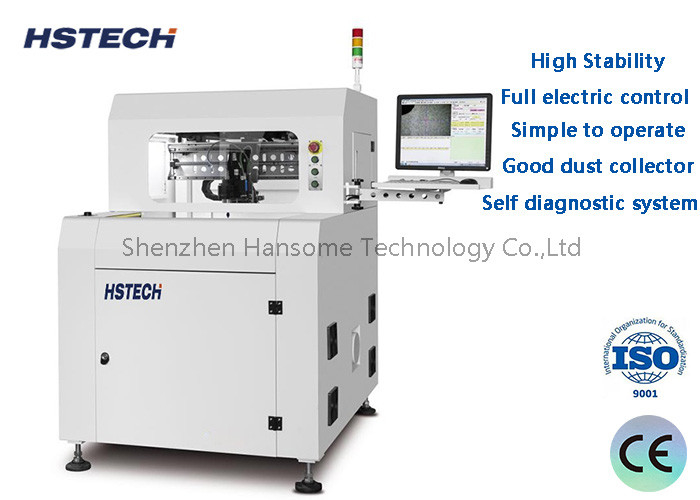

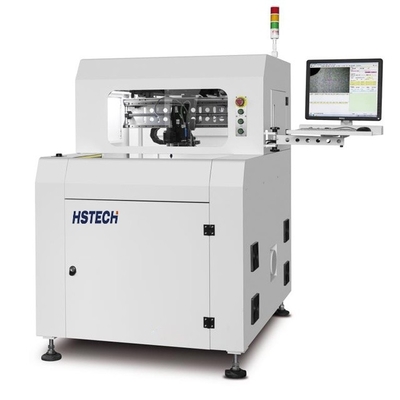

Touch Screen Automatic Curve PCB Router Using Sycotec Spindle
introduction:
PCB Router, or called Automatic PCB cutting machine, with high speed Germany Sycotec spindle driving milling kit to cut high density PCBA and other material substrate.
Features:
1, Full electric control, no air pressure requirement.
2, High Stability, easy to maintenance.
3, Simple to operate, short change over time.
4, Design for middle and small size PCBA.
5, Good dust collector make sure the cleaness during the operation.
6, Allow the milling kit cutting setup by stages greatly reduces the cost for consumbles.
7, The milling cutter is driven by high speed spindle with the advantages of a reduced cutting force,high accuraty, low noise, and suitable for all shape pcba, like round,straight line, L or U type,squres and arc shapes.
8, The self diagnostic system allows easy troubleshooting of malfunction during production and reduce downtime.
Specifications:
| Model | RM-288 | RM-388 | RM-888 |
| Structure | Single Spindle,dual work platforms | Single Spindle,dual work platforms | Single Spindle,dual work platforms |
| Machine Size(mm) | 1000*1200*1550 | 1000*1200*1550 | 1200*1400*1550 |
| Gorss weight | 700kg | 700kg | 900kg |
| Dust collector size(mm) | 625*600*1600 | 625*600*1600 | 625*600*1600 |
| Dust collector power | 3HP/2.2kw | 3HP/2.2kw | 5HP/3.5kw |
| Dust collector Weight | 130kg | 130kg | 130kg |
| Collection method | Bottom collection | Bottom collection | Bottom collection |
| Work platform size | 300*400mm | 300*400mm | 410*510mm |
| Platform driving type | Double rotary platform,precision slicer with 3phase motor inverter | ||
| Driving system | X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter | ||
| Routing Spindle | 5000~50000rpm,auto cooling | 5000~60000rpm,automatic cooling | |
| Cutting speed | 1-100mm/s | ||
| Cutting accuracy | ±0.05mm | ||
| Repeat accuracy | ±0.02mm | ||
| Axis moving speed | 800mm/s | ||
| Z axis moning method | Screw driven,dual guide | ||
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel | ||
| Tool lifespan | Software program control | ||
| Active protective function | safty light curtain | ||
| Security door | manual door | ||
| Error alaum | Yes | ||
| Programing method | Self programing,camera controlled by keyboard and mouser | ||
Packaging:
