| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-ST400 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Handling Equipment | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Signal: | SMEMA | Application: | Electronic Assembly |
| Color: | Silver | Control System: | PLC |
| OEM/ODM: | Available | Power Supply: | AC220V |
| Type: | Automatic | Weight: | 110/130KG |
Customize High Efficiency Easy Operation Automatic SMT PCB Unloader For PCB handling SMT Production Line
Specification
| Model | HS-ST400 | HS-ST530 |
| Efficient PCB size | 50*50~400*400mm | 50*50~530*500mm |
| Available PCB width | 50*400mm | 50~500mm |
| Available PCB thickness | Min 0.6mm | Min 0.6mm |
| Max PCBs capacity | 400pcs(0.6mm thickness) | 400pcs(0.6mm thickness) |
| Cycle time | Approx 10 seconds | Approx 10 seconds |
| Power supply | AC110V/220V,50/60Hz | AC110V/220V,50/60Hz |
| Power consumption | Max 150VA | Max 150VA |
| Transport height | 910±30mm | 910±30mm |
| Transportation direction | L~R, or R~L | L~R, or R~L |
| Air pressure | 4~6 Bar | 4~6 Bar |
| Machine dimension | 650*670*1100mm | 750*780*1100mm |
| Weight | 150KG | 170KG |
Features
1. PLC control system
2. Pass through function
3. Compact design for space saving
4. PCB width adjustable by setting motor driven lead screw rods
5. Width adjustable SMC cyclinder (Japanese brand)
6. Standard SMEMA
7. Various non-standard models can be customized according to different sizes of PCBs and special needs of users
8. Adapt to various SMT, DIP or assembly production lines for fully automatic board loading
9. Select internationally renowned brand pneumatic components
10. Adopting high-performance PLC control, it has characteristics such as stable operation and resistance to electromagnetic interference
11. Standard equipment: Industry standard signal: SMEMA, which can be used for online automation and online operation with other devices

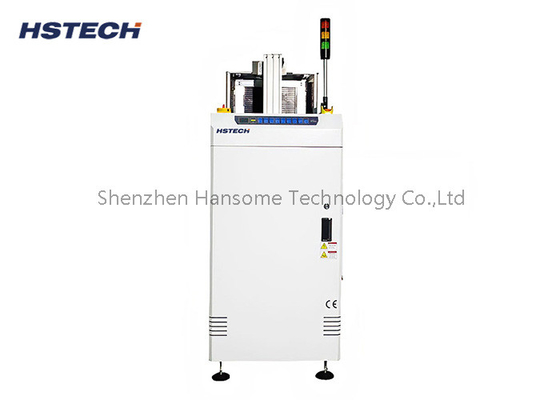

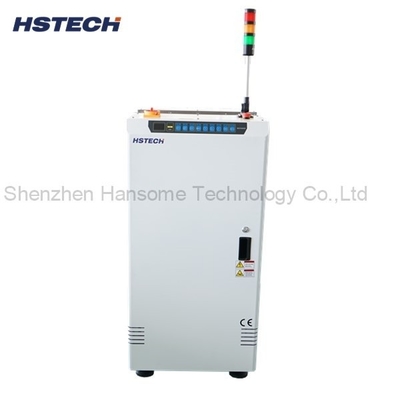

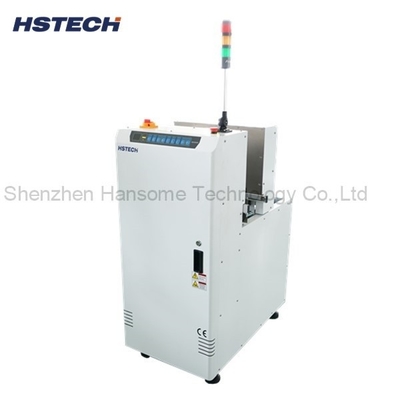

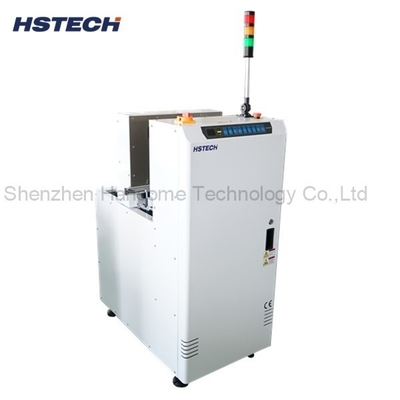

Product physical picture
Application
This unit is in the end of SMT production line, used for collecting the bare board in the trail after received the up-stream signal.
