| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE,TUV |
| Model Number: | HS-VS400 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case, |
| Delivery Time: | 10-20 days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | 3Axis Visual Glue Dispensing Machine | Axis: | 3 Aixs Or 5Axis |
|---|---|---|---|
| Power Supply: | AC220V/110V,500W | CCD Resolution: | 2.5 μm |
| Machine Weight: | 600kg | Machine Dimension: | 1060x1200x1700mm |
| Condition: | New | After-sales Service Provided: | Online Support,Video Technical Support |
| High Light: | Dual Table Glue Dispensing Machine,3 Axis Visual Glue Dispensing Machine,CCD Positioning Automatic Glue Dispenser |
||

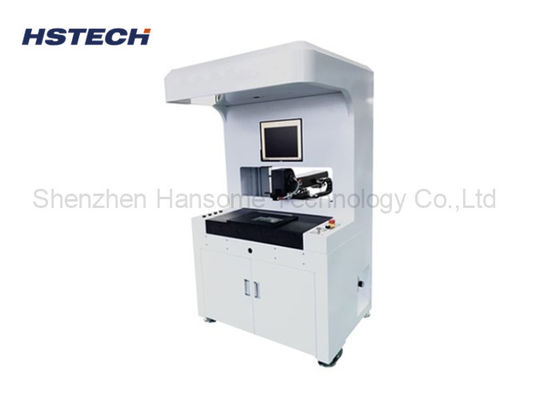

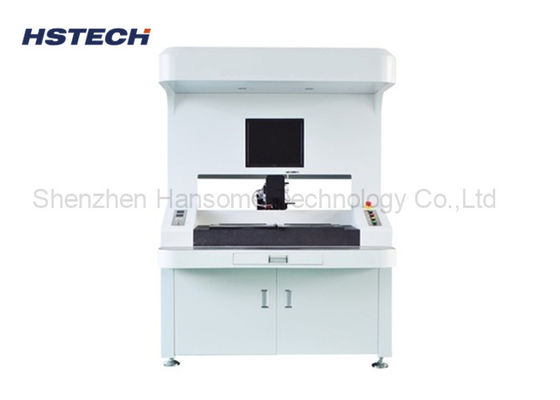

Automatic CCD Positioning Dual Table 3 Axis Visual Glue Dispensing Machine
Product introduction
1. The machine adopt intelligent fast visual identification system.
2. Operator can place the products in any angle, the camera will indentify the product direction.
3. Use windows XP operation system, easy to learn and operation.
4. Hareware control the glue quantity, fast and with high precision.
5. Widely used for dispensing many products, such as electronic products, LED product, toys, semi-conductor product,
spearker, security products, etcs.
Machine Specification
| Product name | Visual Glue Dispensing Machine |
| Model | HS-VS400 |
| Transmission height | 920±20mm |
| Table size | 300*400mm |
| Table qty | single or dual table up to customer |
| Fixture | customized |
| CCD resolution | 2.5 μm |
| Max speed | 1000mm/min |
| Glue viscosity range | ≤5000LPS |
| Repeat accuracy | ±0.02mm |
| Recognition accuracy | ±0.0125mil |
| Power supply | AC220/110V,500W |
| Air pressure | 0.5~0.7Mpa |
| Glue tank | 10L,manual stirring |
| Light source | LED light source |
| Linear guide adjustment | Intelligent adjust |
| Programming mode | Manual teaching |
| Software | Windows+dispensing software |
| Spraying method | Automatic |
| Total power | 2.6kW |
| Machine body | Stainless steel |
| Machine weight | 600kg |
| Machine dimension | 1060x1200x1700mm |
