Detection 6W Dual Motor SMD Components Counter 13" Reel

Detection 6W Dual Motor SMD Components Counter 13" Reel
Detection 6W Dual Motor SMD Components Counter 13" Reel Detection 6W Dual Motor SMD Components Counter 13" Reel Detection 6W Dual Motor SMD Components Counter 13" Reel

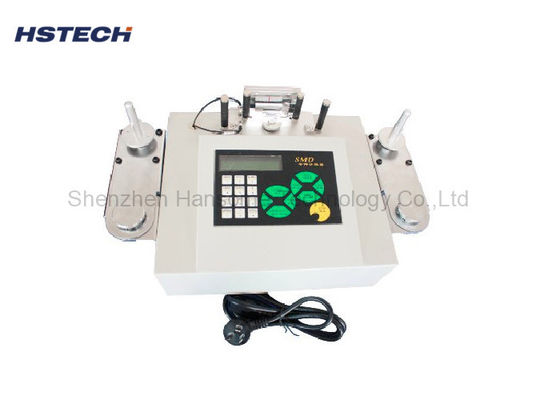

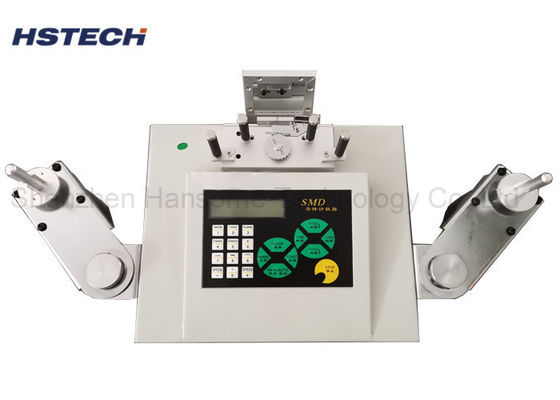

Large Image :  Detection 6W Dual Motor SMD Components Counter 13" Reel

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: YH-890
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 7~10 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Detailed Product Description
Product Name: SMD Chip Counter Motor Brand: Panasonic
Motor Power: 6W Plastic Reel Size: 7-13 Inch
Missing Detection: Optional Package: Carton Box With Foam Protect
Weight: 8.5KG Packing Dimension: 490*320*245mm
High Light:

Dual Motor SMD Components Counter

,

6W SMD Components Counter

,

13" Reel SMD Chip Counter

Infrared Sensor Missing Components Detection Dual Motor SMD Components Counter



Specification



Model: YH-890
Voltage: AC220, 50/60Hz
Power Supply: 15W
Motor Brand: Panosonic 6W AC motor
Counting Range: “-100000~100000"
Pitch Size: 2,4,8,12,16,24,32,44,56,72,88 m
Plastic reel size: 7-13 inch
Universal Products Suitable for all tape components
Error 0
Product Size: 450*270*180mm
Package size 470*280*190mm
Gross Weight: 9.5kg



Features



1. AC100/220V power supply option.
2. Can connect the barcode Scanner and label printer,
3. Easy operate,designed to prevent tape dropping,minimizing risk of damage to tapes.
4. Count forward and reverse ,double-check feature ensures accuracy,built-in memory allows you to preset count quantity.
5. The counter use drafting LCD screen. Small size, light weight, easy to carry
6. Use patent reflector,humanized operation platform.
7. Optical fiber sensor detect leak ,motor will stop working when detected leak.



Detection 6W Dual Motor SMD Components Counter 13" Reel 0Detection 6W Dual Motor SMD Components Counter 13" Reel 1
