8s 0.6Mpa Ionizer Brush PCB Surface Cleaner For SMT

8s 0.6Mpa Ionizer Brush PCB Surface Cleaner For SMT
8s 0.6Mpa Ionizer Brush PCB Surface Cleaner For SMT 8s 0.6Mpa Ionizer Brush PCB Surface Cleaner For SMT 8s 0.6Mpa Ionizer Brush PCB Surface Cleaner For SMT

Large Image :  8s 0.6Mpa Ionizer Brush PCB Surface Cleaner For SMT

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-460BC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 12~20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Surface Dust Cleaner Other Name: PCB Dust Cleaner
Power Supply: AC100-230V PLC: MITSUBISHI
Sticker Roller: 2 Pcs Brush: 1 Pc
Ionizer: 2 Pcs Keyence Condition: New
High Light:

Ionizer Brush PCB Surface Cleaner

,

0.6Mpa PCB Surface Cleaner

,

8s PCB Dust Cleaner

Single Side Sticker Roller Ionizer Brush PCB Surface Cleaning Machine for SMT



Introduction



This machine is a PCB surface cleaning machine, used for cleaning dust, static electricity and dirty on surface of PCB. It used in the front of SMT production line, after the PCB loader and before screen printer. The machine first use a brush to cleaning, then use a ionizer bar to cleaning the static electricity, and after that use a roller together with 2 pcs sticker rollers, at the end also use a ionizer to cleaning the static electricity.



Specification



Model HS-DC250 HS-DC330 HS-DC390 HS-DC460
PCB dimension (50*50)~(350*250) (50*50)~(460*330) (50*50)~(530*390) (50*50)~(530*460)
Machine dimension 555*820*1350 555*900*1350 555*960*1350 555*1030*1350
Weight 80kg 90kg 100kg 110kg



PCB Transporting height Standard 900±20mm
PCB flow direction Left to right
PCB thickness 0.4~5mm
Power supply AC100~240V,single phase,300A
Air supply 0.4~0.6Mpa
Cleaning brush 1 pc,ESD,high precision brush
Ionizer 2 pcs(Keyence)
Sticker roller 2 pcs
Roller 1 pc
Dust collector 1 pc
Transport speed 0~9m/min,adjustable
Cycle time Around 8s



Features



1, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
2, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
3, Equipped with the static eliminate function, completely eliminate electrostatic interference.
4, Touching clean method, cleanness above 99%.
5, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
6, Mechanical parts draw-out design, maintenance is simple.
7, Interface display in English and Chinese, interface operation convenient and simple.

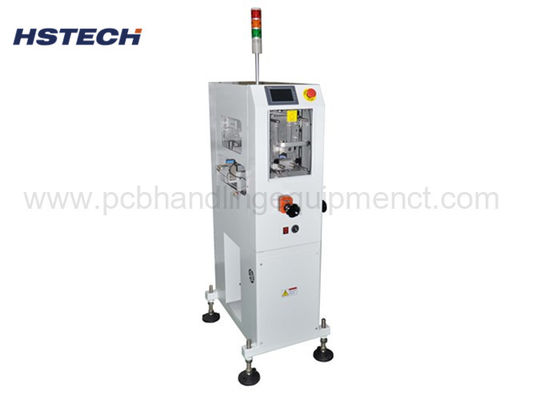

8s 0.6Mpa Ionizer Brush PCB Surface Cleaner For SMT 0

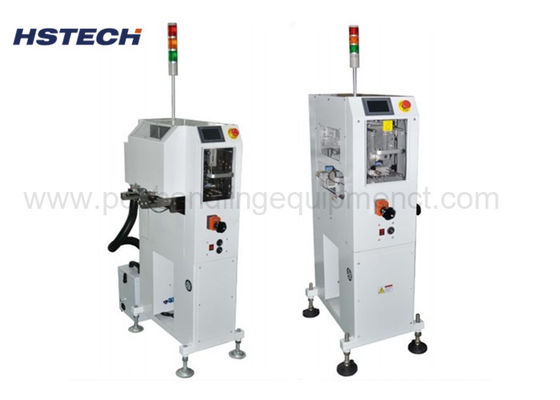

8s 0.6Mpa Ionizer Brush PCB Surface Cleaner For SMT 1

8s 0.6Mpa Ionizer Brush PCB Surface Cleaner For SMT 2
