| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-LD330 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | Multiple Magazine PCB Loader | Other Name: | SMT Board Loading Machine |
|---|---|---|---|
| Power Supply: | AC110V/220V,50/60Hz | Air Pressure: | 4-6 Bar |
| PCB Thickness: | Min 0.4mm | Pitch Selection: | 10-40mm |
| Conveyor Speed: | 0.5-20M/min Or Customized | Communication: | SMEMA |
| High Light: | 0.4mm PCB Loader Hanling Machine,6 Seconds PCB Loader Hanling Machine |
||

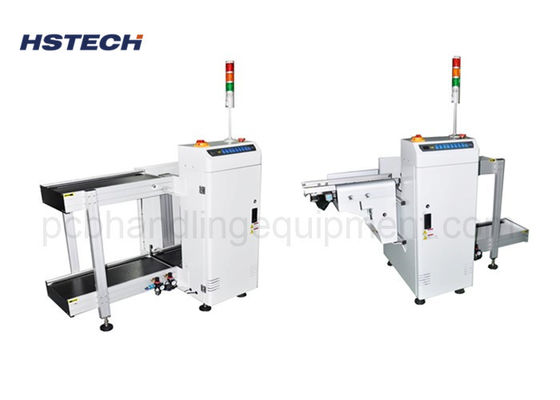

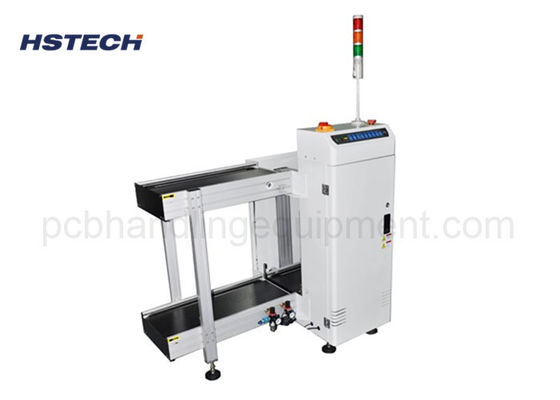

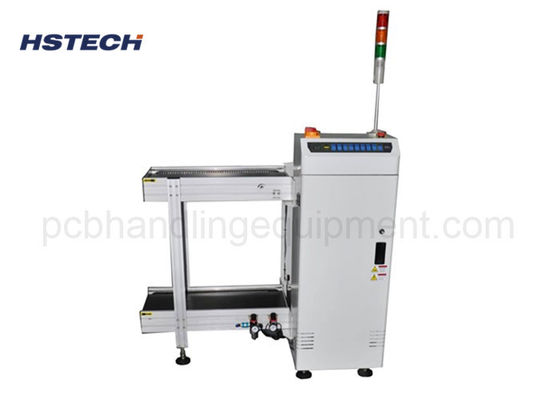

Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine
Application
This unit is used for loading the PCBs,and transporting the PCB on the SMT production line.
Features
1, Module design.
2, Stability enhanced by robust design.
3, Economic design arm test.
4, Smooth and parallel width adjustment.
5, Three magazine racks application.
6, Top and bottom pneumatic clamps to secure magazine rack.
7, No PCB breakage guaranty during loading &unloading.
8,SMEMA compatible.
Specification
| Product name | PCB Loader Machine |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
Model selection
| Model | HS-LD250 | HS-LD330 | HS-LD390 | HS-LD460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine Size | 1400*800*1200mm | 1650*880*1200mm | 1800*940*1200mm | 1800*1010*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 180kg | 220kg | 260kg |
Control Bottun and electric box
