Double Tank SMT Ultrasonic Cleaning Equipment With Cleaning / Drying Function

Double Tank SMT Ultrasonic Cleaning Equipment With Cleaning / Drying Function
Double Tank SMT Ultrasonic Cleaning Equipment With Cleaning / Drying Function Double Tank SMT Ultrasonic Cleaning Equipment With Cleaning / Drying Function Double Tank SMT Ultrasonic Cleaning Equipment With Cleaning / Drying Function

Large Image :  Double Tank SMT Ultrasonic Cleaning Equipment With Cleaning / Drying Function

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: HS-2030H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, with foam
Delivery Time: 15~20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Detailed Product Description
Name: Ultrasonic Cleaning Tank Cleaning Type: Industrial Ultrasonic Cleaner
Cleaning Process: Solvent Cleaning Material: SUS 304 Structure
Cleaning Tank: 99L Drying Tank: 99L
Transducer: 30pcs Warranty: 1 Year
High Light:

pcb cleaning equipment

,

circuit board cleaning equipment

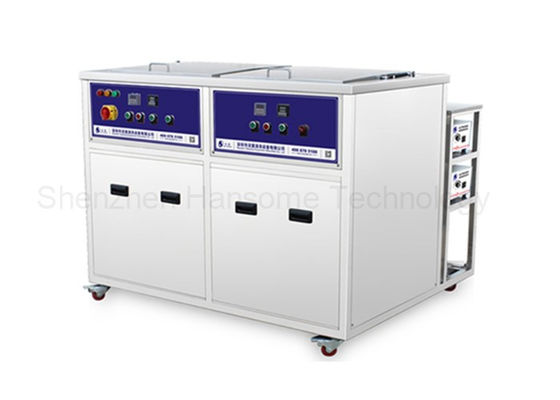

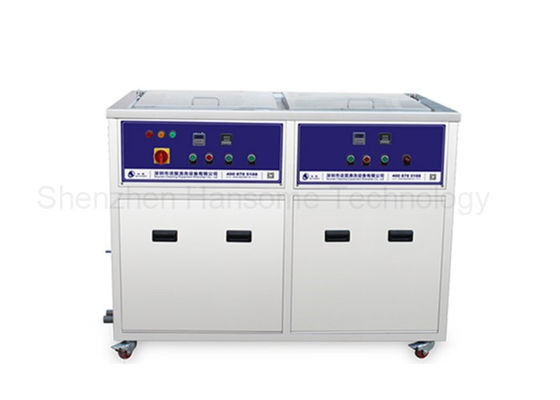

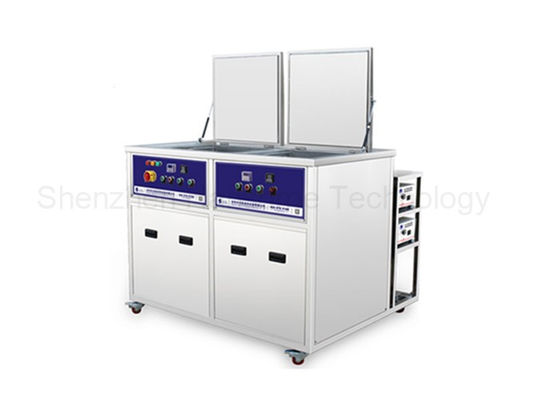

Double Tank SMT Ultrasonic Cleaning Equipment with Cleaning and Drying Function



Introduction



This ultrasonic cleaning tank using ultrasonic generator as the power, by customized the basket to fix the products for cleaning. This model machine has double tanks, cleaning and drying tank, and working individually for 24hours. The machine is widely used to cleaning hardware, watch, glasses, and many other products with Oil and dirt.



Specification



Model: HS-2030H
Ultrasonic power: 0~1500W
Ultrasonic frequency: 28KHz/40KHz,optional
Heater: 20°C to 95°C adjustable
Heating power: 3000W
Power supply: AC380V, 3 phase 60Hz
Inner tank size: 550*450*400mm
Clean basket Size: 400*420*350mm
Clean basket load capacity: Max 200KG
Max tank capacity: 99L
Transducer: 30pcs
Timer: 1~99hours adjustable
Ultrasonic generator: External generator
Drying tank capacity: 99L
Drying method: Air blower
Drying power: 4500W
Drying time: LED display, adjustable
Drying temperature: Environment temp~150℃
Finished drying alarm: Equipped
External machine body Material: SUS304 stainless steel(1.0mm)
Internal machine body Material: SUS304 stainless steel(2.0mm)
Machine size: 1800*700*1100mm



Features



 1. stainless steel tank has resistance to wear and long work life.
2. tank capacity: 175Liter, with Digital timer & heater control
3. with Stainless steel basket
4.Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5.industrial control chip microcontroller.flexible circuit boards control, more secure & stable
6.with drainage,basket,lid and Multi-direction castors
7. Transducer : Korea techinique
8. PCB board is independent research and development design production by skymen
9.Generator is high quality techinique designed and produced which have been used thousands of units by our USA and Europe customers.
10. circulation pump brand name: CNP (Famous brand)



Ultrasonic device



1, Ultrasonic installation method: bottom-mounted shock plate;

2, 72 vibrators are installed at the bottom of the tank; Ultrasonic power: 0-3600W can be adjusted

3, ultrasonic power: 0 ~ 1800W * 2 sets (continuously adjustable), ultrasonic frequency 28 / 40KHz

4, The ultrasonic transducer adopts the pure industrial shock head imported from South Korea, which has large cleaning power and long service life;

5, Adopting the latest bonding technology of Korea and imported special adhesive to ensure better bonding performance between the transducer and the vibrating surface. No degumming considerations, stable performance. The transducers are all reinforced and equipped with high frequency wires.



Application



Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop.
