| Place of Origin: | Japan |
| Brand Name: | JUKI |
| Certification: | CE |
| Model Number: | KE series |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic fixed, Carton package |
| Delivery Time: | 1-3 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 pcs per month |
| Stock: | Large | Product Name: | JUKI NOZZLE |
|---|---|---|---|
| Name: | JUKI Smt Nozzle,SMT Spare Parts NOZZLE For JUKI 509/508/507/505/504/503/502/501/500 | Warranty: | 1 Year |
| Usage: | KE2050 2060 FX-1 Etc | Application: | SMT PCB Assembly Production Line |
| Quality: | Top | Package: | Foam Package+Plastic BOX+Carton Box |
| Shipping Term: | By Air,TNT DHL FEDEX EMS UPS | Material: | Steel,plastic |
| High Light: | smt pick and place nozzles,smd nozzle |
||

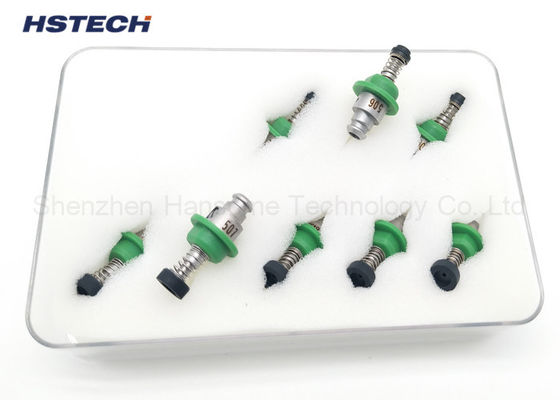

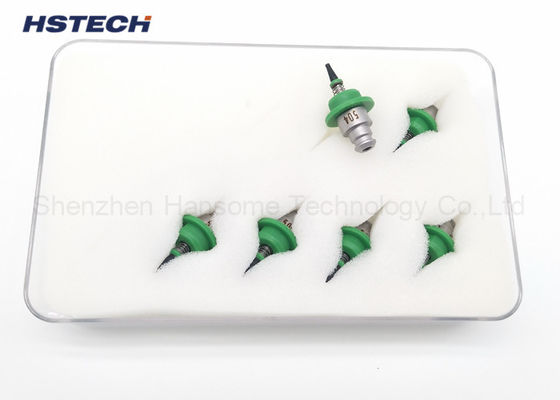

Foam Packaged Spring Tungsten Steel Plastic Suction Part JUKI KE Series Nozzles
Introduction
This JUKI KE series(including 500,501,502,503,504,505,506,etc) SMT nozzle used for SMT production line, for replacing the old and damage nozzles in the pick and place machine, it compatible with JUKI2000 Series chip mounter.Made of Ceramic, made of Tungsten Steel and Rubber. It's high precision production, which can ensure a good mounting performace.
Specifications
| Brand | JUKI |
| Usage | SMT Production line |
| Suction hole | Single |
| Nozzle base | Tungsten steel |
| Parts number | E36037290A0 |
| Nozzle type | 504 |
| Chip mounter | KE2000series |
| Nozzle size | 31x16mm / 1.22 x 0.63 inch(Height x Diameter) |
| Nozzle color | Sliver and green |
| Material | Tungsten steel+rubber+ceramic |
| Weight | 8g/0.353 ounces |
| Package | Customized Blister |
Features
1, Using high quality materials, ceramic, tungsten steel and rubber, better mounting performance and long lifespan.
2, The nozzles are well packed by the customized blister, won't be broken during the shipment.
3, Standard size without any error, high precision.
4, Green and slive color designed, good appearance and environment protected.
5, Suitable for Component suction and placement, like cathode capacitance, diode, SOT, QFN, BGA and so on.
JUKI 2000 Series nozzle models
E36087290A0 JUKI NOZZLE 500 ASSY.1.0×0.5
E36007290A0 JUKI NOZZLE 501 ASSEMBLY 0.7×0.4
E36017290A0 JUKI NOZZLE 502 ASSEMBLY O 0.7/O 0.4
E36027290A0 JUKI NOZZLE 503 ASSEMBLY O 1.0/O 0.6
E36037290A0 JUKI NOZZLE 504 ASSEMBLY O 1.6/O 1.0
E36047290A0 JUKI NOZZLE 505 ASSEMBLY O 3.5/O 1.7
E36057290A0 JUKI NOZZLE 506 ASSEMBLY O 5.0/O 3.2
E36067290A0 JUKI NOZZLE 507 ASSEMBLY O 8.5/O 5.0
E36077290A0 JUKI NOZZLE 508 ASSEMBLY O 9.5/O 8.0
