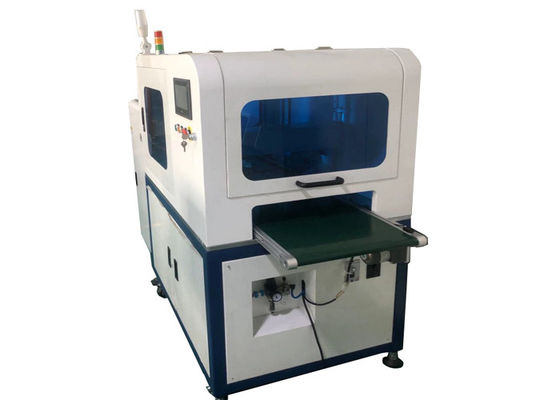

High Speed Pcb Separator Machine Automatic Moving Blade Type Connect PCB Loader

High Speed Pcb Separator Machine Automatic Moving Blade Type Connect PCB Loader
High Speed Pcb Separator Machine Automatic Moving Blade Type Connect PCB Loader

Large Image :  High Speed Pcb Separator Machine Automatic Moving Blade Type Connect PCB Loader

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: HS-F350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case with foam protective
Delivery Time: 1 month
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Full Automatic V-cut Separating Max Separating Length: 1-500mm
Circular Blade Size: Φ125*30*3mm Linear Blade Size: 360*45*6mm
Cutting Thickness: High Speed Steel Cutting Tool Machine Dimension: 990*550*1250mm
Warranty: 1 Year
High Light:

pcb board cutting machine

,

pcb depaneling machine

PCB Production Automatic Moving Blade Type Separating Machine Connect PCB Loader



Description


This machine is a full automatic V-cut type PCB separating machine, it use the PCB loader to achieve automatic PCB loading, and the belt will trasport the PCBs for automatic linear blade and circular blade combined separating. Operator just put the boards into the magazines and wait the PCB units after separating at the end of the machine.It's a high automatic PCB separating machine.



Features


1, PLC control precision PCB depaneling, can connect the PCB loader machine, full automatic from board loading and collecting.

2, Save the labour for manual loading the PCBs, much efficiency and more precision.

3, Can save 100 groups board separating data, when separating different type boards, just import the saved data, very convenient.

4, Moving balde type boards separating method, ultra low cutting force stress, suitable for PCB with components double sided.

5, The boards loading width can be adjusted, suitable for many kinds of PCBs.
6, The machine equipped with the ESD transport belt, it will transport the PCB to the production line automatically.
7, The machine equipped with infrared light curtain sensor, high security.

8, Taiwan brand TBI lead screw, smooth and easy adjusted.
9, High speed Japan brand steel balde, can be sharpen repeatly.
10, The machine can add the SMEMA single, can connect the PCB loader to achieve automatic loading.



Specification



Model HS-F350
Efficiency cutting length 0-500mm
Separating width Best 1-200mm
Circular blade size Φ125*30*3mm
Linear blade size 360*45*6mm
Blade thickness 0.5-4mm
Separating speed Adjustable
Blade material Overseas high quality steel blade
Production ability 100,000pcs per day
Voltage AC110V/220V
Air pressure 0.5-0.8Mpa
Power 150W
Machine dimension 990*550*1250mm
Weight 200KG



Application panels

High Speed Pcb Separator Machine Automatic Moving Blade Type Connect PCB Loader 0





High Speed Pcb Separator Machine Automatic Moving Blade Type Connect PCB Loader 1
