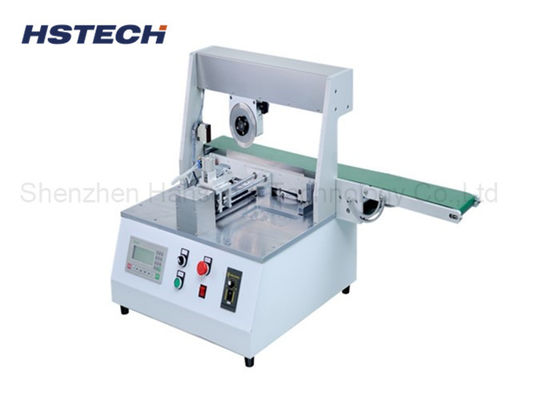

ESD Transport Belt PCB Depaneling Equipment Max 360mm Blade Moving Type PLC Control

ESD Transport Belt PCB Depaneling Equipment Max 360mm Blade Moving Type PLC Control
ESD Transport Belt PCB Depaneling Equipment Max 360mm Blade Moving Type PLC Control

Large Image :  ESD Transport Belt PCB Depaneling Equipment Max 360mm Blade Moving Type PLC Control

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-208
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden pacakge
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 200sets per month
Detailed Product Description
Product Name: Automatic Blade Moving PCB Separator Voltage: AC220V/110V,50/60Hz
Control: PLC Max Separating Length: 50-360mm
Loading: Autoamtic Machine Dimension: 1000*850*1130mm
High Light:

pcb board cutting machine

,

pcb depaneling machine

Max 360mm Blade Moving Type ESD Transport Belt PCB Separating Machine



Introduction



This machine is a automatic PCB separating machine, it equipped with the automatic board feeding system, adopt the upper circular blade and bottom linear blade combination, during the separating, the PCB will keep fixed, and the circular will moving to finish the depaneling process.



Advantages



The traditional blade moving PCB separating machine requires manual placement, positioning, time-consuming and labor-intensive, and the production efficiency is low.

This device has been upgraded to the automatic feeding, which is controlled by microcomputer and can customized the moving distance based on the size of the PCB boards. Without manual positioning, it also can connect to the board loading machine, saving labor, improving board separation efficiency and higher degree of automation.



Features



1, Micro computer control, set the parameter easily and fast.

2, The PCB will be fixed during the separating, won't damage the components on the PCB surface.
3, The distance between the upper circular blade and down linear can be adjustable, the adjustment range 0-15mm.

4, The linear blade can be adjusted up and down, suitable for seprating the PCBA with double side components.
5, High technology automatic board feeding, don't need manual feeding, can connect to the PCB loader.
6, The machine equipped with the counter, can counting the depaneling quantity.
7, Safety operation, the machine equipped with the Omron brand light curtain induction sensor,when hands or other object touch the machine operating distance range, the machine will alarm and stop operation.
8. The machine use step motor, improve the precision.


Specification



Product name Auto feeding blade moving PCB separator
Model HS-208
Part-up height 15mm
Air supply 0.6-0.8Mpa
Max board length 360mm
Voltage AC220V/110V,50/60Hz
Separating width 50~360mm
Blade material SKD61 high speed steel
Separating speed Adjustsble
Suitable board Aluminum, all kinds of fiber-glass board, FR4
Machine size 1000*850*1130mm
Weight 100kg
