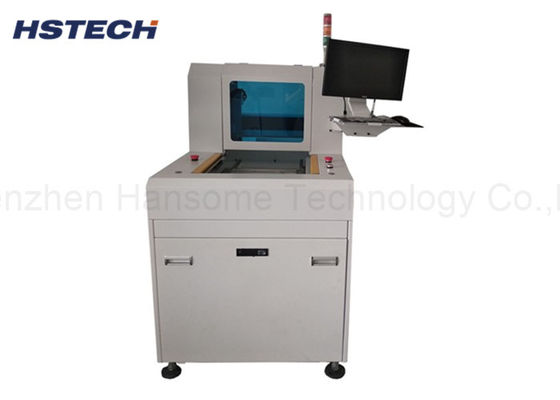

Single Platform Automatic PCB Depaneling Router Machine Small Size Rat Bite AC 380V

Single Platform Automatic PCB Depaneling Router Machine Small Size Rat Bite AC 380V
Single Platform Automatic PCB Depaneling Router Machine Small Size Rat Bite AC 380V Single Platform Automatic PCB Depaneling Router Machine Small Size Rat Bite AC 380V

Large Image :  Single Platform Automatic PCB Depaneling Router Machine Small Size Rat Bite AC 380V

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: RM-F318
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 1 month
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Single Platform PCBA Router Machine Platform: Single
Routing Kit: Milling Cutter Working Platform: 350*400mm
Driven Motor: Servo Motor Voltage: AC380V
Machine Dimension: 740*835*1240mm(L*W*H)
High Light:

pcb cnc router

,

pcba cutting machine

Single Platform Small Size Rat Bite Automatic PCB Depaneling Routing Machine

Machine introduction



This single platform autoamtic PCB router machine is a cost-effective PCB router, small size, save much room, suitable for small factories.

This machine has the full functions,also equiped with the dust-collector.



Working principle



Use the PC to programming, and the high speed milling cutter working according to the programs.



Advantages compared with traditional PCB separator



1, Well protected the PCBs, avoid the tin break and damage to the compnent caused by manually bending.

2, Ultra low force stress, avoids the stress produced mechanically by using punch or bending.

3, Suitable for cutting all kinds of curve PCB panels.


Main features


1, Max 40000rpm high speed routing spindle.
2, Chinese and English operation language selection control panel.

3, Windows operation, manual location or file import.
4, CCD detection.
5, External dust-collector including.

6, Suitable for separating all kinds of Curve PCB.


Sepcfication



Model RM-F318
Structure Single Spindle,single platform
Machine Size(mm) 740*835*1240mm
Gross Weight 550kg
Dust collector size(mm) 700*600*1200mm
Dust Collection method Bottom collection
Work platform size 350*400mm
PCB positioning Fixtures, functional thimble
Driving system X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter
Routing Spindle Max40000rpm
Cutting speed 1-100mm/s
Cutting accuracy ±0.05mm
Repeat accuracy ±0.02mm
Axis moving speed 800mm/s
Z axis system Screw driven,dual guide
Router kit milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Tool life control Software program control
Dust collector 2.2Kw,380V
Dust collector air pressure 4-6KG/cm³
Programming Online programming
Edit function Straight line, curve line, circule,arc
Security door Manual door
Error alarm Yes
Program method Self programing,camera controlled by keyboard and mouser





Dust Collector Specification



Size 700*600*1200mm
Power 2.2KW,3HP,AC380V
Noise <200dB
Air in/out size 6inch/8inch
Power wire 5*2.5²
Filter 16pcs

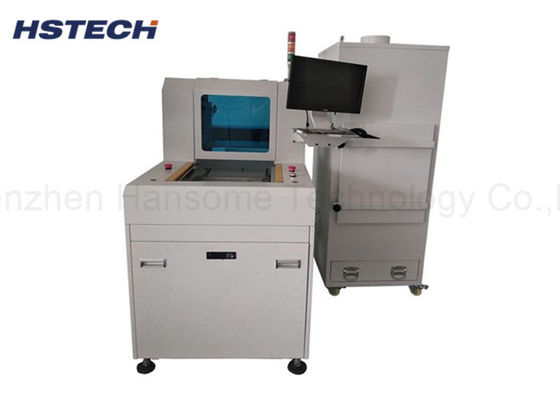

Machine details







Single Platform Automatic PCB Depaneling Router Machine Small Size Rat Bite AC 380V 0
