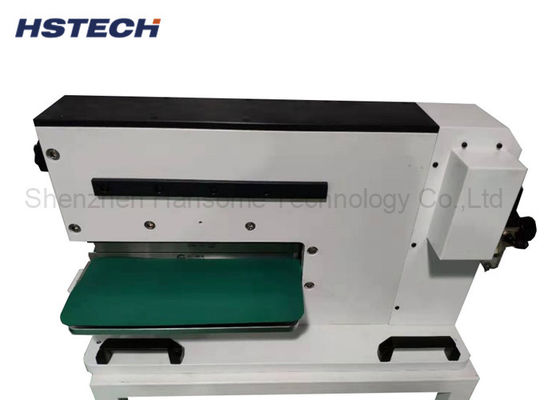

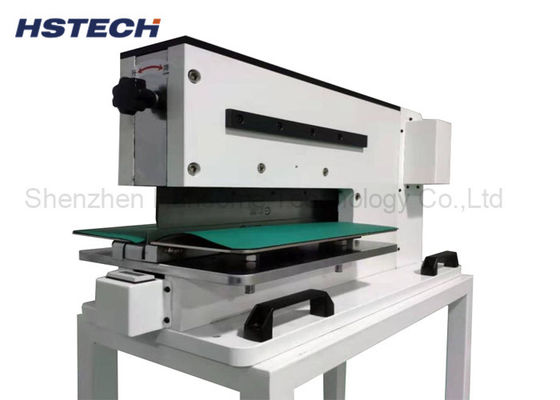

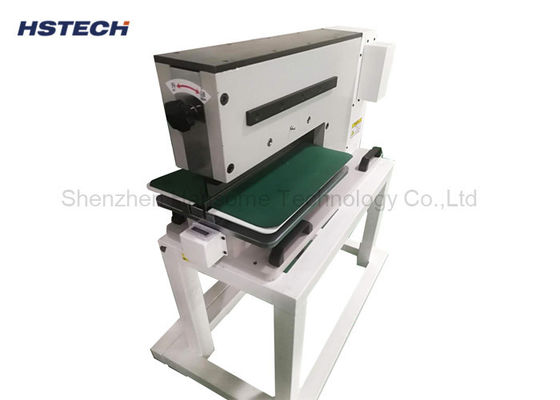

New Condition PCB Depaneling Equipment Powerful Low Stress V Cut Linear Blade

New Condition PCB Depaneling Equipment Powerful Low Stress V Cut Linear Blade
New Condition PCB Depaneling Equipment Powerful Low Stress V Cut Linear Blade New Condition PCB Depaneling Equipment Powerful Low Stress V Cut Linear Blade New Condition PCB Depaneling Equipment Powerful Low Stress V Cut Linear Blade

Large Image :  New Condition PCB Depaneling Equipment Powerful Low Stress V Cut Linear Blade

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-310
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden pacakge
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 200sets per month
Detailed Product Description
Product Name: Pneumatic PCB Separating Machine Other Name: Pneumatic PCB Depanelizer
Air Pressure: 0.5-0.8Mpa Voltage: AC220V/110V
Pcb Thickness: 0.2 To 5.0mm Pcb Length: 0 To 360mm
Package: Wooden Case Condition: New
High Light:

v cut pcb depanelizer

,

pcb board cutting machine

Powerful Low Stress V-Cut Line Linear Blade PCB Depanelizer Equipment



Introduction



This machine is pneumatic pcb depanelizer, also called guillotine type PCB depaneling machine, it used for separating the V-cut line connectted PCB, with high power air cylinder driven the blade base, place the PCB on the platform, and step on the feet switch to finish separating, it has much better performance than the blade moving pcb separator, ultra low cutting force stress and well protected the boards.



Features



1, Suitable for all kinds of PCB boards with V-cut

2, Guillotine type blade separating, ultra low force stress at 500-600uE, smooth and flat, no bent and glitch.
3, Penumatic and electricity driven combined.
4, Security: small guillotine only available for board feeding, ensure the safety of the operator.
5, Easy maintanance, operator can handling the machine with easy training.
6, Durable, using import high quality steel made cutting tool.



Specification



Product name PCB depanelizer
Model HS-310
Air cylinder High power cylinder
Air supply 0.5~0.8Mpa
Efficient cutting length 1-360mm
Linear blade size 360*43.5*6mm
Blade material Import high quality high speed steel tool
Separating speed 1-300mm/s
V-cut thickness 0.3-3.5mm
Air consumption 200-400(L/min)
Machine size 700*325*400mm
Weight 130kg
Suitable board All V-cut boards
