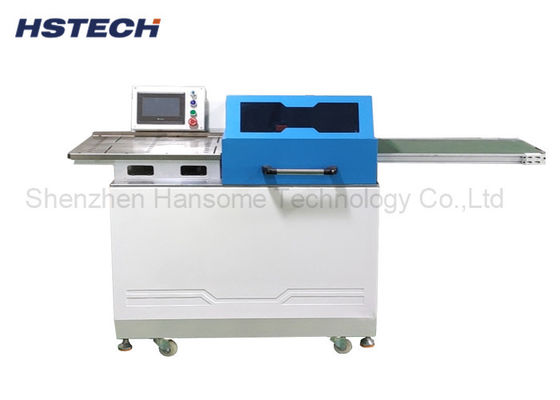

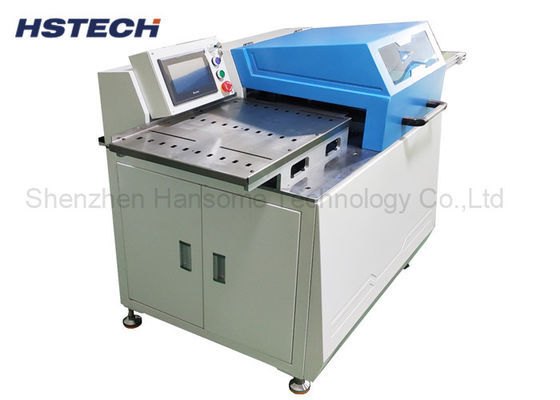

V Cut Line Pcb Separator Machine Automatic Multiple Blade High Speed Steel Tool

V Cut Line Pcb Separator Machine Automatic Multiple Blade High Speed Steel Tool
V Cut Line Pcb Separator Machine Automatic Multiple Blade High Speed Steel Tool

Large Image :  V Cut Line Pcb Separator Machine Automatic Multiple Blade High Speed Steel Tool

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: HS-F380
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case with foam protective
Delivery Time: 1 month
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Multiple Blade Pcb Separating Machine Other Name: Automatic V-cut PCB Separating Machine
Efficiency Cutting Width: 0-360mm Blade Size: Φ360*Φ43.5*6mm
Blade Material: High Speed Steel Tool Separating Speed: 300-500mm/s(adjustment)
Cutting Thickness: 1.0-3.5mm Machine Dimension: 2200*580*1060mm
High Light:

v cut pcb depanelizer

,

pcb board cutting machine

Automatic Multiple Blade V-cut Line PCB Depaneling Separating Machine



Description


This automatic Multiple blade PCB depaneling machine adopts multiple groups upper and down blade for separating, max can install 3 groups blade,each group blade can install and unload different size mesotrons to fit different width panels separating requirement.



The machine use the computer screen control with a counting device, which you can use to preset the processing production,and the space of cutting tool is visible on the screen.



Features


1, Multiple groups, multiple upper and down blade separating at the same time, greatly lower the separating force stress,
protect the boards without bent.
2, By customized the mesotrons to fit the width of each V-cut lines, the mesotrons used for fix the blades, different boards need different mesotrons.
3, Min distance between balde is 3mm, blade thickness is 0.2mm.
4, The blade base can install and unload freely, max can install 3 groups blade base.
5, The machine adopts PLC and touch screen control, Infrared light curtain sensor, high security.
6, This machine designed for LED lighting industry, especially for LED tube, whole LED hard strip light, and other strip boards.
7, 100,000 pcs products production per day,high efficiency and save labor.
8, The machine can add the SMEMA single, can connect the PCB loader to achieve automatic loading.



Specification



Model HS-F380
Efficiency cutting width 0-360mm
Blade size  Φ360*Φ43.5*6mm
Blade thickness 0.2mm
Min Distance between each blade 3mm
Blade material Overseas high quality steel
Production ability 100,000pcs per day
Voltage AC110V/220V
Power 200W
Machine dimension 2200*580*1060mm
Weight 160KG





V Cut Line Pcb Separator Machine Automatic Multiple Blade High Speed Steel Tool 0
