| Product Name: | Desktop Soldering Machine | Axis: | 4 Axis |
|---|---|---|---|
| Platform: | Single | Programming: | Manual With Teaching Box |
| Motor: | Stepper Motor | Linear Guide: | Hiwin Brand |
| Voltage: | AC110V/220V | Warranty: | 1 Year |
| High Light: | auto soldering machine,automated soldering equipment |
||

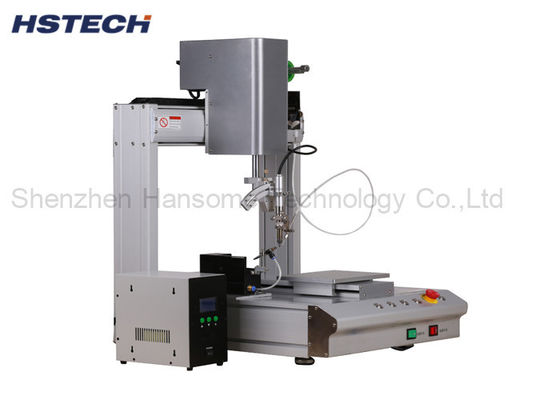

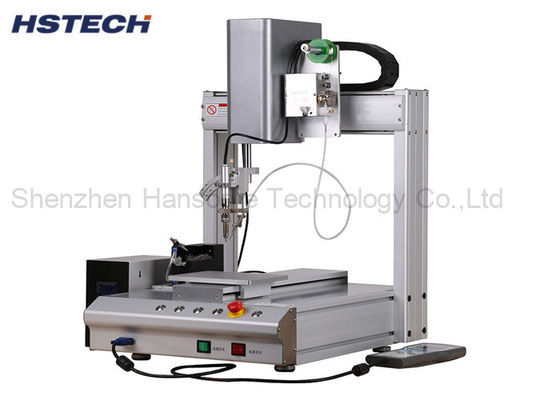

Manual Programming Stepper Motor Timing Belt Desktop Auto Soldering Machine
Introduction
This automatic desktop type soldering machine is a hot sale product, which using the teaching box for manual programing, adopt the high quality stepper motor and timing belt to driving the machine. The machine has the options for single or doulbe working station, also the traveling range standard is 300*300mm, it can be customized to fit customer's product requirement.
Application
1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
Features
1, It's 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The machine has automatic cleaning function, the soldering iron/tip without nitrogen, very safety and environment protective,
3, Taiwan brand Hiwin linear guide used in the machine moving system, high precision and high accuracy.
4, Using very mature control board to make the machine control system, also available for using PLC.
5, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
6. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
8, With the handheld LCD teaching pendant, the programming is simple,high precision and easy to learn.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
