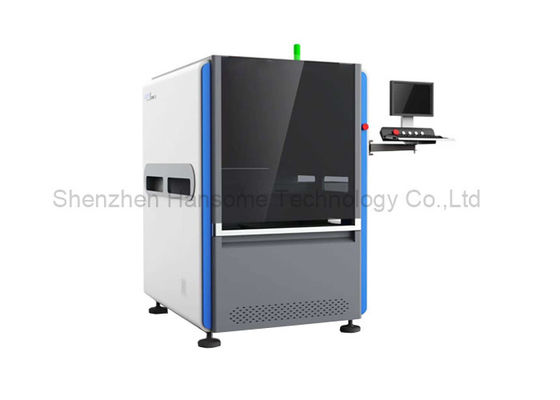

100000 RPM PCB Router Machine CCD System Inline PCB Depaneling Router Without JIG

100000 RPM PCB Router Machine CCD System Inline PCB Depaneling Router Without JIG
100000 RPM PCB Router Machine CCD System Inline PCB Depaneling Router Without JIG

Large Image :  100000 RPM PCB Router Machine CCD System Inline PCB Depaneling Router Without JIG

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: ARM-710
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, foam protection
Delivery Time: 20~30 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: Inline PCBA Router Machine Material: Sheet Matel
PCB Size: 50x50~350x350mm PCB Thickness: 0.4-6mm
Transmission Height: 900±50mm Power Supply: AC380V, 50/60Hz
Separating Speed: 1-100mm/s Communication: SMEMA
High Light:

pcb cnc router

,

inline pcba router machine

100000 RPM Spindle CCD System Inline PCB Depaneling Router Machine without Jig



Introduction



This machine is a full automatic inline router system, with loader and unloader for ATE test line, high speed spindle, low stress force to cut the PCBA and ensure precision and clearliness.



Features



1, Use Germany Sycotec Spinde, Max 1000000 RPM and automatic tooling switching function.
2,The ESD brush at the bottom of the PCBA, has a perfect dust absorbing effect.
3, Excellent CCD system with Imaging camera, Moritex lens and measurement -level light source, to support machine calibration,compensation and positioning, with great stability and anti-distrubance capacity.
4, Perfect Jig-less routing solution,support 20*20~350*350mm PCB size, and pick-up device can realize fast remove and install, high reliability and low cost.
5, Standard tooling repertory with three kinds of 3.175tools,each with 10pcs inside. With precision clamping system and lifting system,X1,Y1 and Z1 to switch the tools
6, Unload solution1: PCBA after cutting,will be placed to the ESD belt, then enter the test or assembley line.Unload solution 2: With batch unloading unit,the clamp will palce the tray box.

7, The milling cutter is driven by high speed spindle with the advantages of a reduced cutting force,high accuraty, low noise, and suitable for all shape pcba, like round,straight line, L or U type,squres and arc shapes.
8, Win7/Win10 english version system



Specification



Model ARM-710 ARM-711
Max PCB size 350x350mm
Min PCB size 50x50mm
PCB thickness 0.4-6mm
Transmission height 900±50mm
Transport direction Left to right
Transportation speed 1500mm/s(max) Adjustable
Loading mode Section-type transportation guide rail
Rail width adjustment Automatic
Communication interface SMEMA
PCB positioning Top and bottom guide rail clamping
Picking system 360degree rotary clamping system, 2 groups of vacuum suction nozzles; 4 groups of ESD belt transportation/batch panel forwarding units at most
Cutting spindel/speed 100,000 rpm/min, Germany brand 60,000 rpm/min, Germany brand
Automatic tool change Yes No
Break knife check Yes Yes
Separating speed 1-100mm/s
Cutting accuracy ±0.05mm
Milling kit φ0.8~φ3.0 right side ratation, shank Tungsten steel
Repeat positioning accuracy ±0.02mm
Coordinate moving speed 1000mm/s
Out plate type ESD belt transportation / batch panel forwardrding unit
Waste collection Outlet via track
Procedure programing GERBER drawing import /editing program through visual system
Air supply 5-8 kg/cm³
Power supply AC380V, 50/60Hz, 3KW
Machine size 1000x1300x1600 mm
Weight
Appro. 1000kg



Machine size



100000 RPM PCB Router Machine CCD System Inline PCB Depaneling Router Without JIG 0



Details



1, Automatic cutting tool change 2, Broken knife detection 3, Automatic production mode

4, SPC statistics function and match ERP system

5, Optioned to explosion-proof vacuum dust collector and air volume monitor



100000 RPM PCB Router Machine CCD System Inline PCB Depaneling Router Without JIG 1



Perfect PCBA routing system without Jig to fix the board, support 20x20~350x350mm pcb size, and the pick up device can realize

fast remove and install, heigh reliability and low cost.



100000 RPM PCB Router Machine CCD System Inline PCB Depaneling Router Without JIG 2


ESD belt inline unloading



Unloading solution 1: PCBA after separating, will be placed onto ESD belt, then enter the test/assembly line.



Unloading solution 2: With batch unloading unit ARM710-1, the clamp will place to the tray box of ARM710.



100000 RPM PCB Router Machine CCD System Inline PCB Depaneling Router Without JIG 3
