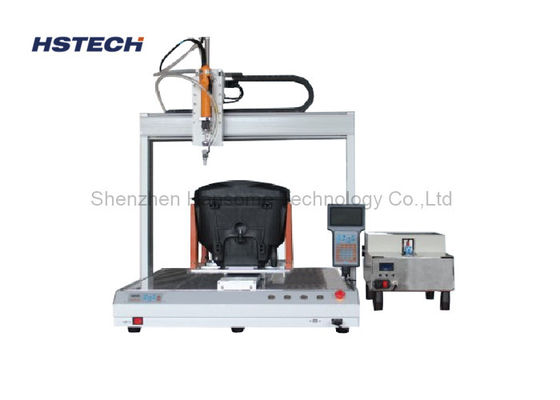

Single Head Screw Fastening Machine Air Blowing With Teach Pendant

Single Head Screw Fastening Machine Air Blowing With Teach Pendant
Single Head Screw Fastening Machine Air Blowing With Teach Pendant

Large Image :  Single Head Screw Fastening Machine Air Blowing With Teach Pendant

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SL331A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, foam inside
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Air Blowing Screw Lock Machine Motor: Closed Loop Motor And Step Motor
Axis: 3 Axis Suitable Screws: M1.0-M5.0
Weight: 55kg Material: Titanium And Titanium Alloy
High Light:

screw tightening robot

,

screw locking tightening machine

Air Blowing Single Head Screw Locking / Fastening Machine with Teach Pendant



Introduction



This air bolwing type screw fastening machine is a new deveoped screw locking machine, it used the air blowing uninterrupted feeding, which is much higher efficiency than the aspirating screw lock machine.



Features



1, Air blowing type feeding, more efficiency.

2, Desktop and visible operation, can connect the automatic production line.

3, Convenient and friendly document teaching and editing functions, and provide a variety of advanced editing functions such as batch modification, array copying, graphic shifting, graphic zooming, automatic rounding, etc.

4, Suitable for screws specification M1-M5.

5, Widely application, can used to many industry, like electronic production, top, LED light, vehicle electronics, toyes, power supply,

PC keyboard, etc.

6, Support CAD, corelDRAW format file input.



Specfication



Model HS-SL331A
Product name Air blowing type screw lock machine
Power supply AC110V/220V, 50/60Hz
X/Y/Z working range 300/300/100mm
XYZ speed X/Y axis: 1-600mm/s, Z axis: 300mm/s
Y platform 190*150mm
Repeat accuracy 0.02mm
Motor X/Y axis closed loop motor, Z axis step motor
Driven system Timing blet for X/Y, Z axis screw
Document support CAD,CorelDRAW
Loading capacity X/Y:10kg,Z:5kg
Linear Guide HIWIN(Taiwan brand)
Photoelectric switch PEPPERL+FUCHS(Germany brand)
Cylinder AirTAC
Suitable screws M1 - M5
Machine size 520*585*645mm
Gross weight 55kg
