Drawer Feeding PCB Router Machine Auto Depaneling PCBA Cutting Machine

Drawer Feeding PCB Router Machine Auto Depaneling PCBA Cutting Machine
Drawer Feeding PCB Router Machine Auto Depaneling PCBA Cutting Machine

Large Image :  Drawer Feeding PCB Router Machine Auto Depaneling PCBA Cutting Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: CM-610
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, foam protection
Delivery Time: 20~30 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: PCBA Router Machine Feeding: Drawer Feeding
Working Platform: Double,can Combined As One Platform Function: PCBA Pin Board Separating
Material: Sheet Matel Color: Orange,gray
High Light:

pcb cnc router

,

pcba cutting machine

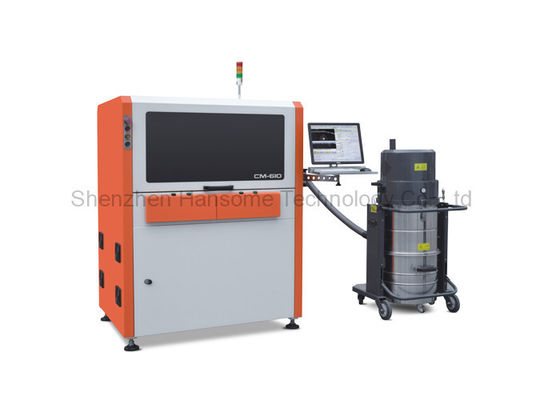

Drawer Feeding Automatic Depaneling PCB Router Machine with Dust Collector



Features



1, Milling type PCB Router with high precision and high cleanliness,dual parallel work platform and single pindle.

2, Low footprint,drawer type platform is designed to avoid the pollution of cleanliness room.

3, Top side dust collection with higher efficiency than the bottom side,and lower noise.

4, Dual platform design, easy to operate and maintenance.

5, Application for 350*350mm pcba, bigger size can be customized.

6, Upgrade with robot to realize inline function.(option)



Specification



Model CM-610 CM-610max
Max PCB size 350x350mm 450x450mm
Min PCB size 5x5mm
PCB thickness 0.4~6mm
Work table height 850mm
Loading mode Manual feeding and release
PCB positioning Magnetic thimble or jig
Cutting spindle/speed Sycotec,made in Germany,5000-60000rpm
Cooling type Self cooled type
Break knife inspection Yes
Cutting speed 1-100mm/s
Cutting accuracy ±0.05mm
Milling kit φ0.8~φ3.0 right rotation,shank tungsten steel
Repeating positioning accuracy ±0.02mm
Coordinate moving speed 1000mm/s
Precedure programming GERBER drawing import or editing through visual system
Air supply 5-8KG/cm³
Power supply AC380V±5%,50/60Hz,3KW
Machine dimension 1250*1000*1650mm 1350*1100*1650
Machine weight
Appro 900kg





Machine dimension

Drawer Feeding PCB Router Machine Auto Depaneling PCBA Cutting Machine 0

Machine details



Super Vision System(Equipped with Germany Industrial imaging camera and Japan brand Moritex lens), and ESD brush top side dust collection device.

Drawer Feeding PCB Router Machine Auto Depaneling PCBA Cutting Machine 1

Intergrated cutting system(Cutting with jig or magnetic thimble), and Magnetic thimble PIN(patent design)

Drawer Feeding PCB Router Machine Auto Depaneling PCBA Cutting Machine 2

Reliable cutting system(Use Germany Sycotec spindle and frequency invert),Win7/Win10 english version system.

Drawer Feeding PCB Router Machine Auto Depaneling PCBA Cutting Machine 3
