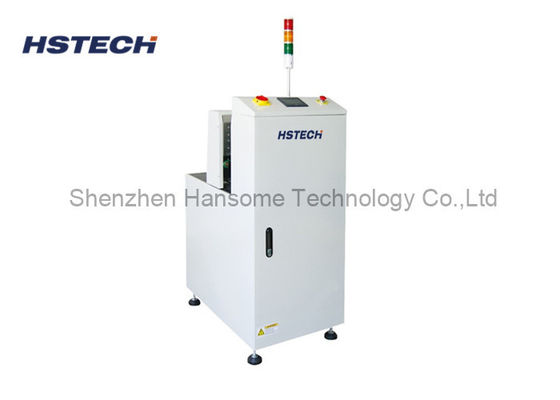

Bare Board PCB Destacker Equipment Step Motor Panasonic PLC Stroe 50 Pcs

Bare Board PCB Destacker Equipment Step Motor Panasonic PLC Stroe 50 Pcs
Bare Board PCB Destacker Equipment Step Motor Panasonic PLC Stroe 50 Pcs

Large Image :  Bare Board PCB Destacker Equipment Step Motor Panasonic PLC Stroe 50 Pcs

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-460DT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package,with foam
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: Bare Board Destacker Color: White
Power Supply: AC110V/220V,single Phase,max 150A PLC: PANASONIC
Relay: Schneider Height Adjustment: Feet Cup
Warranty: 1 Year Load Capacity: Strong
High Light:

smt assembly equipment

,

pcb loader and unloader

Panasonic PLC Stroe 50pcs Automatic PCB Bare Board Destacker Equipment



Application



This machine is used to loading the bare PCBs to the start of SMT line.



Specification



Model HS-330DT HS-460DT
PCB Size 50*50~460*330 50*50~530*460
Usage Loading the bare boards
PCB thickness Min 0.6mm
Board loading time 6s
Air pressure 4-6bar,max30L/min
Transport direction L-R or R-L(optional)
Capacity 10~150pcs
Machine height standard(900±20mm)
Machine size 600*820*1200mm 700*950*1200mm



Features



1, Panasonic PLC control.

2, Touch Screen Control, Step motor.

3, Full sheet metal structure,cooling soldering, computer white surface.

4, Uninterrupted loading, available for By-pass function.

5, Fast PCB feeding time, around 6 sec.

6, Smooth and parallel width adjustment(hand lead screw control).

7, Three color tower light display.

8, Whole machine in time error detection.

9, SMEMA communication interface,standard 4 pin wire.
