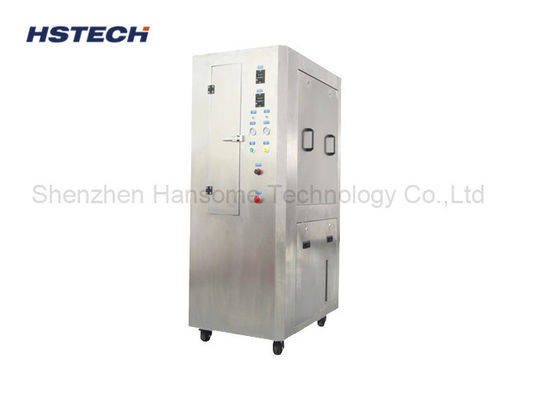

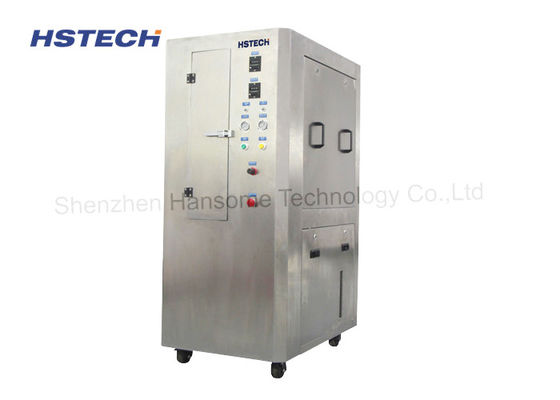

Stainless Steel Cabinet SMT Stencil Cleaner Fully Pneumatic Power

Stainless Steel Cabinet SMT Stencil Cleaner Fully Pneumatic Power
Stainless Steel Cabinet SMT Stencil Cleaner Fully Pneumatic Power Stainless Steel Cabinet SMT Stencil Cleaner Fully Pneumatic Power

Large Image :  Stainless Steel Cabinet SMT Stencil Cleaner Fully Pneumatic Power

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: HS-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: SMT Stencil Cleaner Power: Pneumatic
Cleaning Object: Stencil,copper Screen,gule Screen Control: Button
Movment: Wheel Color: Gray
High Light:

circuit board cleaning equipment

,

smt stencil cleaning machine

Data sheet of Pneumatic stencil cleaner HS-600.pdf...



Fully Pneumatic Power Stainless Steel Cabinet SMT Stencil Cleaning Equipment



Introduction



This machine serve for the electronic manufacturing, it used to clean stencil,screen print,mesh, copper screen,micro screen and crystal disk,also the misprinted circuit board ,fixture, etc.



Specification



Model HS-600
Application stencil,cooper screen,gule screen
Stencil size standard 29inch and below
Cleaning solvent Alcohol
Cleaning liquid capacity Max 45L,Min20L
Best cleaning fluid using volume 40L
Liquid consumption 120ml/pc
Cleaning method

Rotary double side pressure injection and high pressure air

Cleaning time 2~4 Min Stencil and Copper Screen
Drying time 2~5 Min
External air supply 0.4Mpa~0.6Mpa
Consumer air quantity 400~600L/Min
Air outlet size φ125*25mm
Solder dross filter mode 3 level filter(10um,5um,1um)
Weight 200kg
Machine dimension 980MM(L)*700MM(W)*1730MM(H)



Features



1, Stainless steel cabinet,durable,also can resist hurt by acid and alkali cleaning chemistry.
2, Pneumatic power, no electricity, very safe.
3, Cleaning solvent high precision filter system,which can lower cleaning solvent consumption.
4, Unique design on air exhaust can reduce cleaning chemistry consumption.
5, Good adaptability for compressor air only 0.45Mpa could run the machine.
6, One button operation, can control the cleaing and drying process simply.
7, Famous brand parts(pump and air source filter),high quality which can ensure long term quality and reliability.
8, Modular design to ensure easy maintenance.



Machine details



Stainless Steel Cabinet SMT Stencil Cleaner Fully Pneumatic Power 0Stainless Steel Cabinet SMT Stencil Cleaner Fully Pneumatic Power 1



Cleaning effect



Stainless Steel Cabinet SMT Stencil Cleaner Fully Pneumatic Power 2
