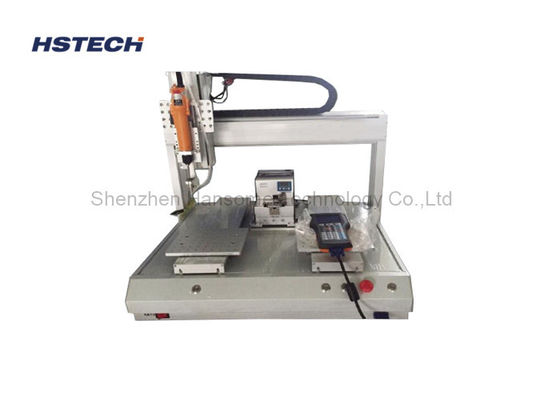

Automatic 4 Axis Screw Fastening Machine Double Y Platform Screw Tightening Robot

Automatic 4 Axis Screw Fastening Machine Double Y Platform Screw Tightening Robot
Automatic 4 Axis Screw Fastening Machine Double Y Platform Screw Tightening Robot

Large Image :  Automatic 4 Axis Screw Fastening Machine Double Y Platform Screw Tightening Robot

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SL5331
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, foam inside
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Automatic Screw Lock Machine Material: Titanium And Titanium Alloy
OEM: Accept Axis: 4 Axis
Suitable Screws: M1-M5 Drive System: Step Motor And Timing Belt
High Light:

desktop screw machine

,

screw locking tightening machine

Desktop Automatic 4 Axis Double Y platform Screw Locking / Fastening Machine



Introduction



Using this screw locking machine to realizes the automatic conveying, tightening and testing of screws through various electric and pneumatic components.

Through equipment to reduce the number of manuals and reduce the bad factors caused by manual misoperation.This equipment is a typical customized automation equipments.



Features



1, Easy and straightly desktop operation, can connect with production line operation, convenient replacement products.

2, Y axis can according to need to make double location ( double Y axis), the operator can alternate products up and down.

3, This equipment is mainly used for lock the screws size from M1-M5.

4, Support CAD documents input.

5, this Automatic screw feeding machine available for similar size screw length is ±5 mm.



Specfication



Model HS-SL5331
Voltage AC110V/220V,50/60Hz,Meanwell brand
X/Y1/Y2/Z working range 500/300/300/100mm
XYZ speed Max XY:600mm/s,Z:300mm/s
Y platform 190*150mm
Repeat accuracy 0.02mm
Motor Stepper motor(Shinano Kenshi brand)
Driven system Timing blet for X/Y, Z axis screw
Document support CAD,CorelDRAW
Loading capacity X/Y:10kg,Z:5kg
Linear Guide HIWIN(Taiwan brand)
Photoelectric switch PEPPERL+FUCHS(Germany brand)
Cylinder AirTAC
Suitable screws M1 - M5
Machine size 720*685*597mm
Gross weight 75kg
