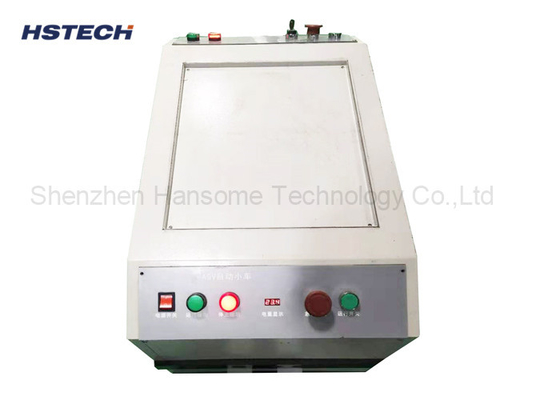

LED Dispaly Automated Guided Vehicle Robot Dual Wheel Automated Guided Cart

LED Dispaly Automated Guided Vehicle Robot Dual Wheel Automated Guided Cart
LED Dispaly Automated Guided Vehicle Robot Dual Wheel Automated Guided Cart LED Dispaly Automated Guided Vehicle Robot Dual Wheel Automated Guided Cart

Large Image :  LED Dispaly Automated Guided Vehicle Robot Dual Wheel Automated Guided Cart

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-200AGV
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5~7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week
Detailed Product Description
Product Name: Automated Guided Vehicle Other Name: AGV Transport Car
Driving Power: DC24V Load Capacity: 100kg
Moving Speed: 0-50m/min Condition: New
High Light:

automated guided cart

,

automated guided vehicle robot

Dual Wheel Driven LED Dispaly Automated Guided Vehicles with Li Battery



Introduction



This AGV car is a economic vehicle, made of high strength aluminum alloy and high torque precision rotating parts. It's used rubber tape guidance to realize high-precision positioning and bidirectional driving.

The load capacity is 100KG and can meet mostly requirements. It has the function of fault self-test and can easily realize remote technical support and malfunction overhaul. It leads into multiple application ports and humanized interface that make customers easier to operate the control system. It has got mechanical anti collision and obstacle avoidance system, which can ensure the safety of operation.



Specification



Product name AGV transport car
Machine dimension 760*420*350mm
Guide Method rubber strip guidance
Driving Method Dual-wheel differential driving
Load Capacity 100kg(or customized)
Driving power DC24V
Moving speed 0-50m/min
Turning radius min 800mm(car body)
Navigation accuracy ±10mm
Continuous working time >24h
Gradeability 3-5degree
Stop accuracy ±10mm
Lifting height 50mm
Battery charge method Manual charging
Safety induction range ≤3m,can be adjustable
Emergency brake distance <20mm
Battery Li Battery
Alarm
light and sound alarm
