SMEMA Signal Sticker Roller SMT Cleaning Equipment Dust PCB Surface Clean Device

SMEMA Signal Sticker Roller SMT Cleaning Equipment Dust PCB Surface Clean Device
SMEMA Signal Sticker Roller SMT Cleaning Equipment Dust PCB Surface Clean Device SMEMA Signal Sticker Roller SMT Cleaning Equipment Dust PCB Surface Clean Device

Large Image :  SMEMA Signal Sticker Roller SMT Cleaning Equipment Dust PCB Surface Clean Device

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-330BC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 12~20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Surface Dust Cleaner Power Supply: AC100-230V
Air Pressure: 0.4~0.6Mpa Function: Clean Dust, Static On The PCB Surface
Machine Weight: 90kg Condition: New
High Light:

pcb cleaning equipment

,

circuit board cleaning equipment

SMEMA Signal Sticker Roller Static Electricity Dust PCB Surface Clean Machine



Machine introduction



This automatic PCB surface cleaning machine used before the solder paste screen printer or the conformal coating machine, it used for cleaning the fine chips, static electricity, dust, fibers, hair, skin debris, metal particles and other objects on the surface of PCBs. It's a perfect equipment which ensure the totally clean of the PCB, eliminate the false welding, empty welding, lifting, and skewing in advance, produce high quality products. The machine use the sticker roller and brush to clean the dust, static electricity of the surface of the PCB, multiple cleaning process, with great performance.



Features



1, SUS304 stainless steel machine body, stable and durable.

2, PLC and touch screen control system.

3, Perfect static cleaning system, using the high quality Japan brand Keyence Ion wind bar,high-speed anti-static spiral brush, and the vacuum device.

4, Double sticker roller to clean the dust on the PCB surface.

5, Draw-out design for easy changing of adhesive rollers, maintenance is simple.

6, The foreign matter adsorbed by the dust removal roller can be recovered by the dust removal roller to eliminate the secondary pollution to the substrate.

7, Touch screen display in both English and Chinese language, operation convenient and simple.

8, SMEMA signal compatible.



Specification



Model HS-330BC HS-460BC
PCB dimension (50*50)~(460*330) (50*50)~(530*460)
Machine dimension 555*900*1350 555*1030*1350
Weight 90kg 110kg



PCB thickness 0.5~3.2mm
Power supply AC100~230V,single phase,300A
Air supply 0.4~0.6Mpa
ESD brush Top 1 pc
Dust remove sticker roller top 2 pc
Adhesive roller Top 1 pc
Vacuum device 1 pc
Ion wind bar brand Best quality Japan brand Keyence
If with dust collector Yes
Conveyor rail adjustment Crank wheel
Fixed rail  Front fixed
Transport speed 0~9m/min,adjustable
Transport height standard 900±20mm
Direction L to R, or R to L,optional
Cycle time Around 8s

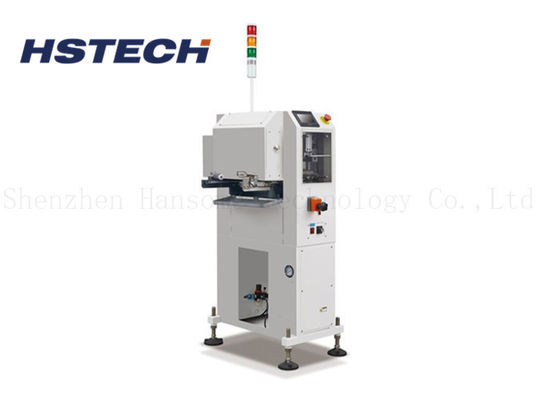

SMEMA Signal Sticker Roller SMT Cleaning Equipment Dust PCB Surface Clean Device 0

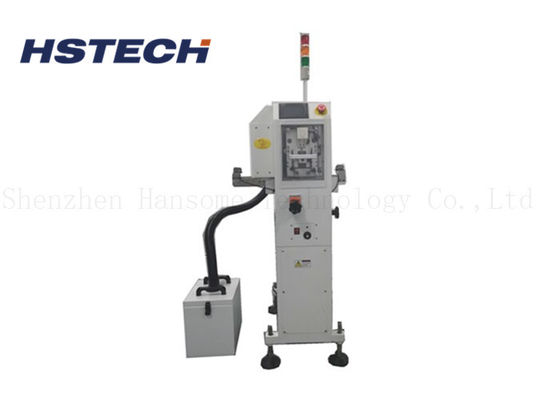

SMEMA Signal Sticker Roller SMT Cleaning Equipment Dust PCB Surface Clean Device 1
